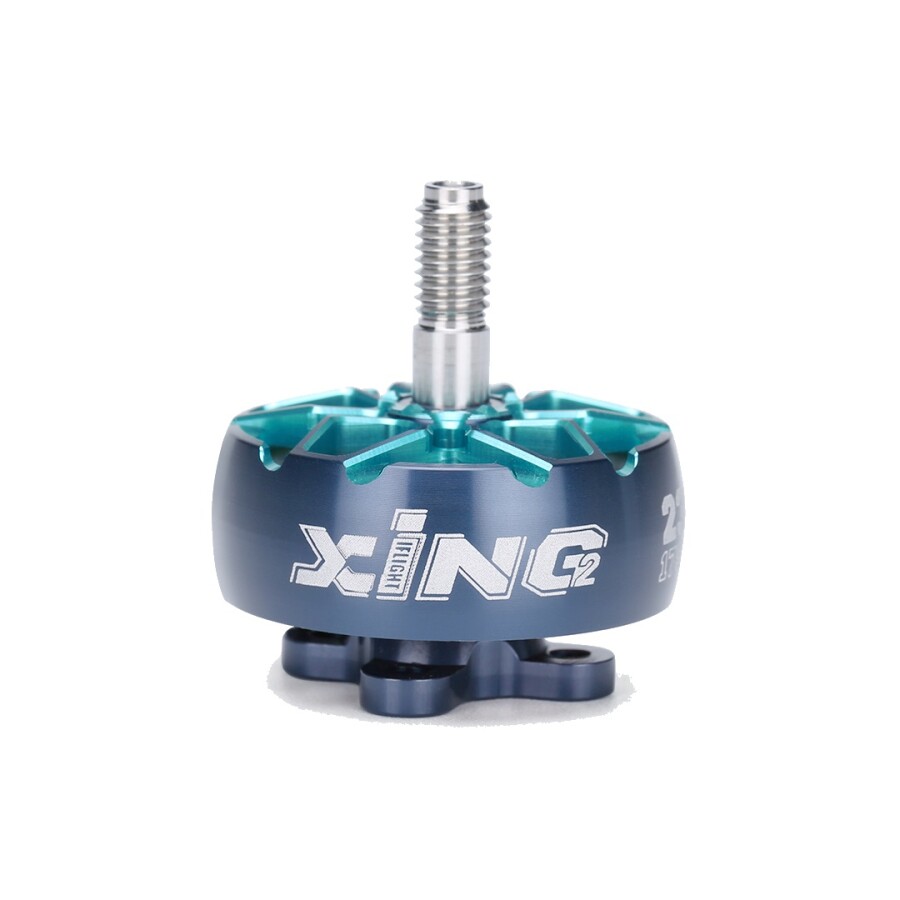

XING2 2306 1755KV 4-6S FPV Drone Motor
The XING2 2306 1755KV 4-6S FPV Drone Motor uses new center-slot N52H curved arc magnets to significantly reduce response time.
The high-quality materials and durable bell-shaft connection minimize the magnet air gap and stator lamination. The smaller the air gap, the lower the reluctance and the higher the magnetic flux (the magnetic analog of current); This provides greater efficiency and higher power!
Features
- Model: XING2 2306 Motor
- KV: 1755KV
- Weight (including cable): 32.5 g
- Dimensions: φ30*32.2 mm
- Phase-to-Phase Resistance: 76.4 mΩ
- Input Voltage: 24 V
- Peak Current: 36.21 A
- Maximum Wattage: 869 W
- Mounting Holes: 16*16 φ3 mm
- Rotor Specifications: Unibell
- Shaft Diameter: 5 mm
- Shaft Overhang Length: 13.5 mm
- Tip: 160 mm/20 AWG
- Magnet: N52H Curved
- Configuration: 12N14P
- Bearing Type: NSK
- Bearing Specification: φ9*φ4*4
- Winding: Single-Wire Copper Winding
