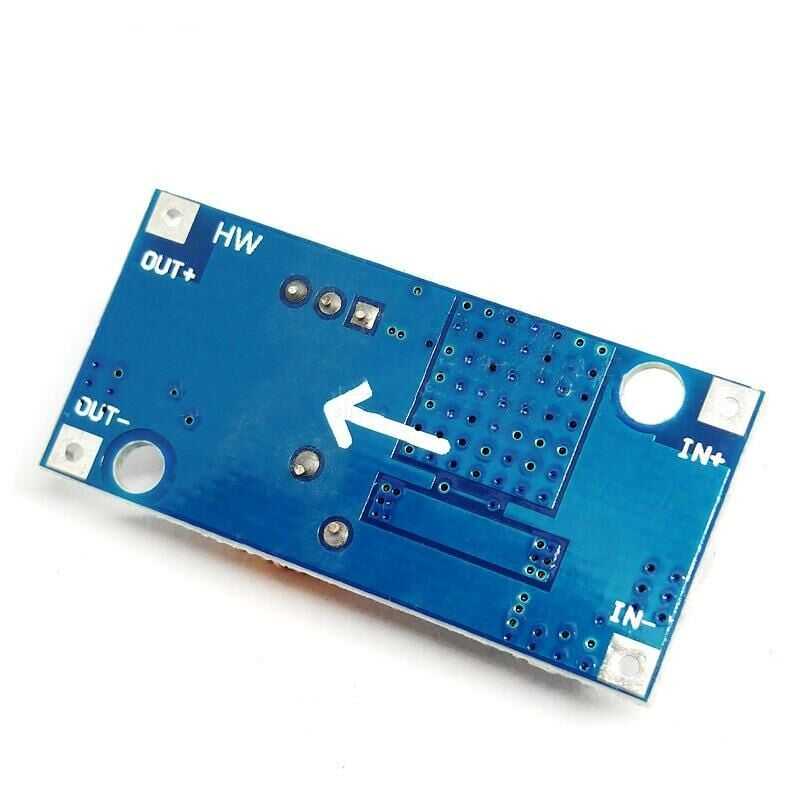

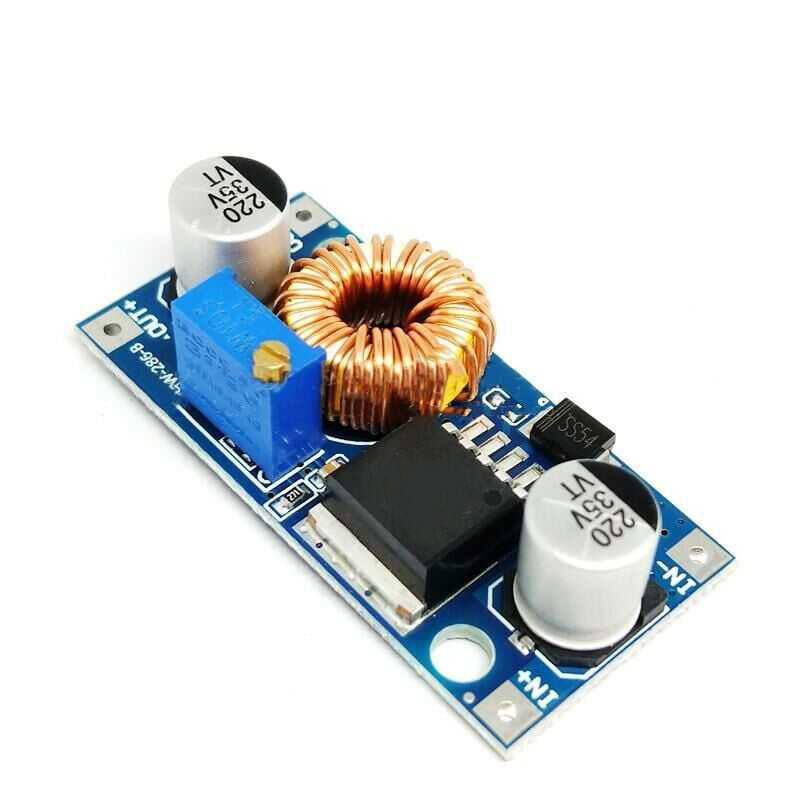

XL4005 5A Adjustable Step Down Voltage Module

It is a DC to DC Adjustable Step Down Voltage Module based on XL4005 with 5A current rating. This module operates at 180 KHz frequency. XL4005 Power Supply Module drives 5 Amps current with excellent line and load regulation, low ripple and high efficiency.

XL4005 is a DC-DC step down module, meaning the output voltage is lower than the input voltage and can be used for LCD TV & Used in a wide range of applications from monitors, battery chargers, and hobbyist regulated power supply modules.

Technical Specifications

Input voltage range:5-32 Volts DC

Output voltage range: 1.25-32 Volts DC adjustable

Output current: 0-5A

Output power: 75W

Card Dimensions: 44x21mm

High efficiency up to 96%

Thermal shutdown function

Current protection

Short circuit protection

Input reverse polarity protection: None (if necessary, you can connect a high current diode in series with the input).
