Building a Portable Charging Station with Solar Panels

Materials Required for the Project

1. 12V 500mA Solar Panel - Solar Cell
2. Voltage Regulator ---- (Used to convert the variable voltage from the solar panel into a stable 5V USB output).
3. Connection Wires
4. 1N4007 Diode (Used to prevent current from flowing back toward the panel)

Step-by-Step Installation Process

Importance of the Voltage Regulator

Solar panels generate a variable voltage depending on the intensity of sunlight. For example, a 12V panel may produce 3V in shaded conditions and up to 18V under direct sunlight. To avoid damaging the sensitive circuits of your phone, this voltage must be reduced to a stable 5V value.

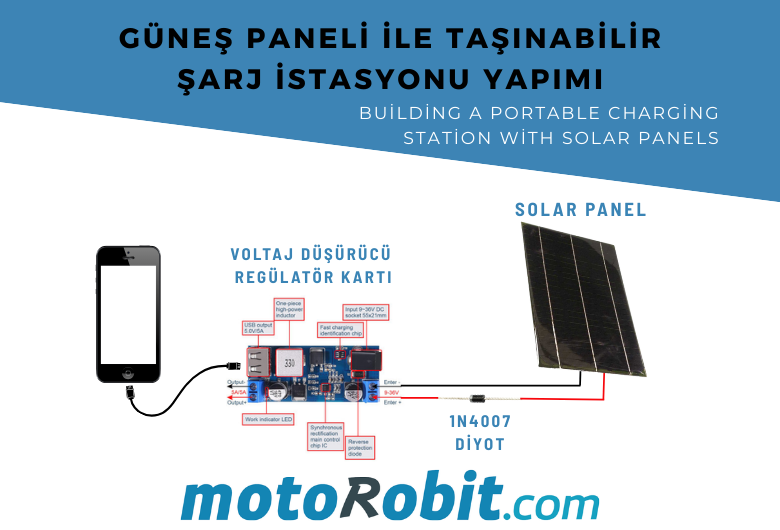

Circuit Diagram and Connection

What Are the Advantages of the Project?

• Completely Free Energy: Unlimited charging as long as there is sunlight.

• Educational: A great introduction to learning renewable energy and voltage regulation concepts.

• Emergency Kit Friendly: A vital piece of equipment for earthquake or disaster emergency kits.

Frequently Asked Questions (FAQ)

Question: How long does it take to charge my phone with this system?Answer: This depends on the wattage of the panel used. Under ideal sunlight conditions, a 5W panel can fully charge a smartphone in approximately 4–6 hours.

Question: Does it charge on cloudy days?Answer: Yes, but with reduced efficiency. If the LED indicator on the regulator is on, charging continues at a lower rate.
