Pulse Signal Generator for MKS OSC PWM Stepper Motor

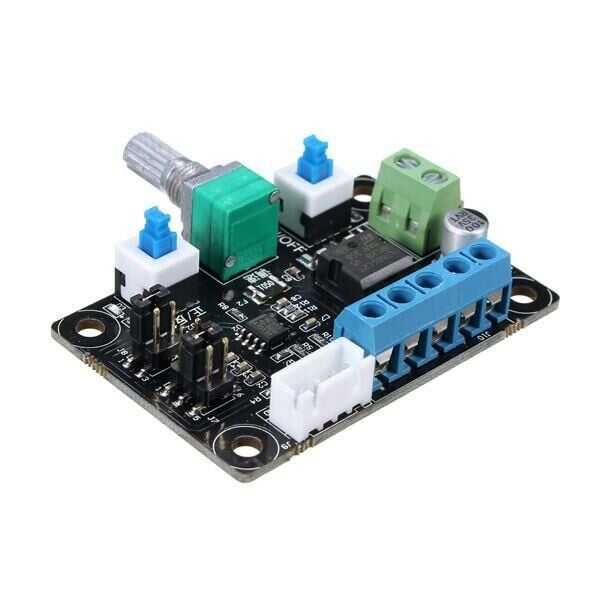

This 3D Printer MKS OSC Stepper Motor Controller Pulse PWM Speed Inverting Module pulse used as a signal for stepper drivers It is a module that generates.
It must be used with a driver to control the stepper motor; In other words, you need the following components as a minimum: a controller like Arduino), as well as a stepper driver (TB6600, TB6560like) and of course you need the stepper motor.

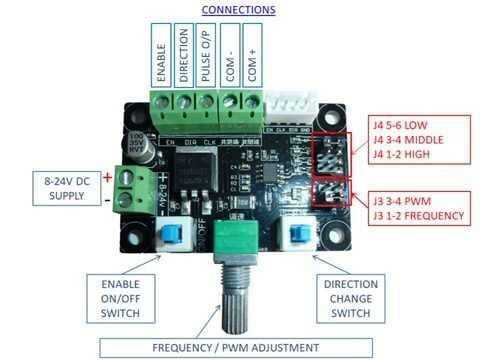

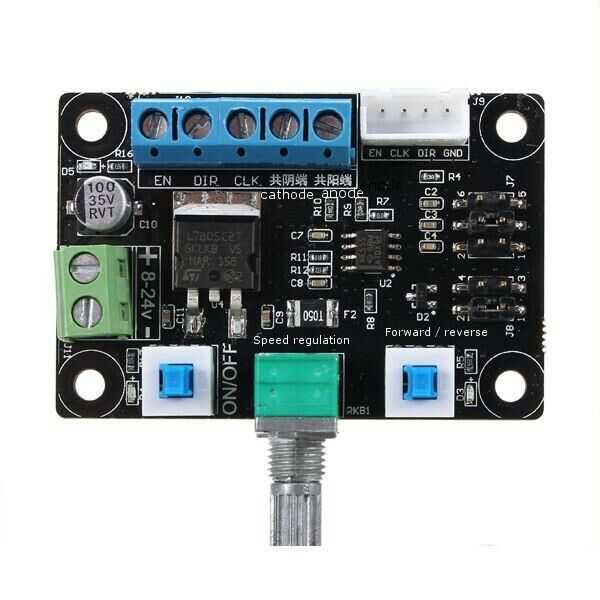

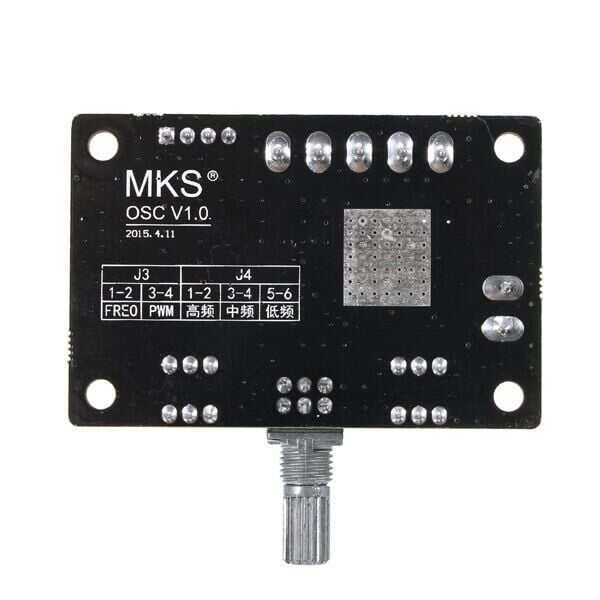

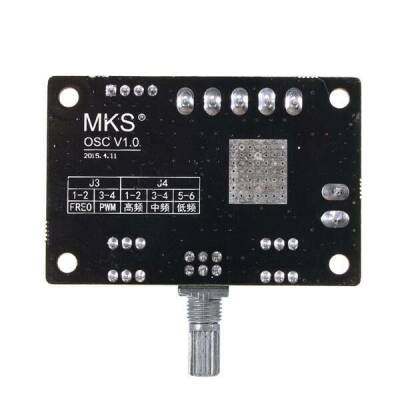

It consists of 3 kinds of frequency signals, including 5.4k-160khz, 540-16.6khz, 80-2.4khz. Frequency measurement: two PUL ports and common cathode (or common anode) can be measured.
Different stepper motor driver different port sign, but same function
EN = ENA = FREE -> Enable
PUL = PULS = CLK -> Pulse
DIR = CW = CWW -> Direction
Common anode connection (connect with B)
EN + PUL + DIR + all together connect to common anode port
EN- connect to EN
PUL- connect to CLK
DIR- connect to DIR
Common cathode connection (connect with B)
EN- PUL-DIR- all together connect to common cathode port
