Raspberry Pi Sensor HAT (B)

Raspberry Pi Sensor HAT (B)

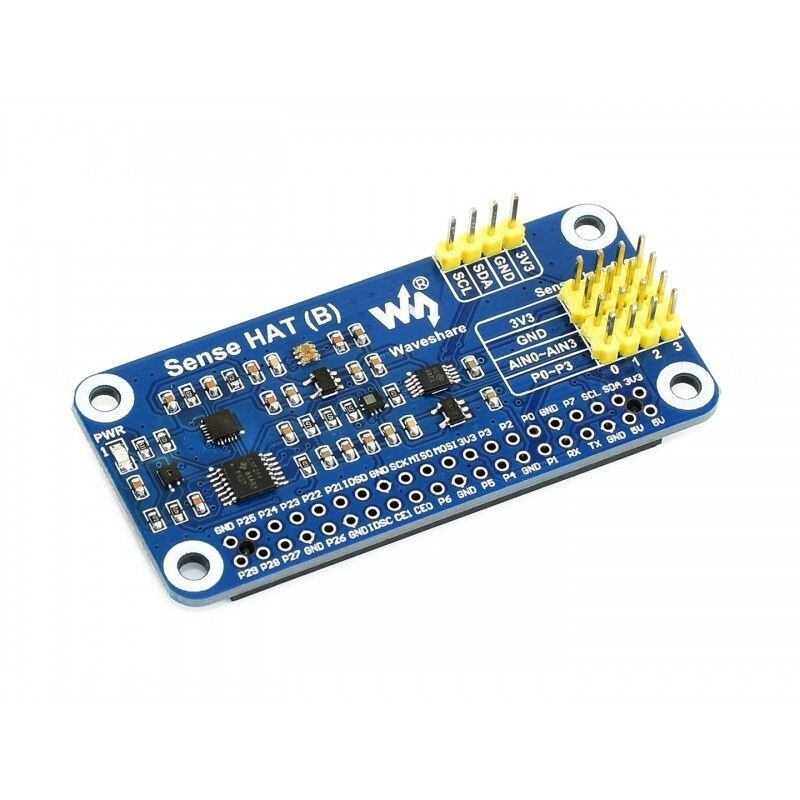

Raspberry Pi Sensor HAT (B) is a sensor expansion board specially designed for Raspberry Pi. It includes a built-in gyroscope, accelerometer, magnetometer, barometer, temperature and humidity sensor, etc. I2C interface communication supports more external sensors. You can use this board if you want to turn Raspberry Pi into a robot that can detect movement posture and orientation, or if you want Raspberry Pi to collect sensor data such as temperature, humidity and atmospheric pressure in the surrounding environment.

Features

• SKU: 16864
• Standard Raspberry Pi 40PIN GPIO extension header supports Raspberry Pi series boards.
• Onboard ICM20948 (3-axis accelerometer, 3-axis gyroscope and 3-axis magnetometer) detects movement, orientation and magnetic field.
• Onboard SHTC3 digital temperature and humidity sensor allows monitoring of the environment.
• Onboard LPS22HB barometric pressure sensor allows monitoring of the environment.
• Built-in TCS34725 color sensor determines the color of a nearby object.
• Built-in SGM58031 ADC, 4-channel 16-bit precision, AD expansion to support more external sensors.
• I2C control pins are available to connect other motherboards such as STM32.


Package Content

• Sense HAT (B) x1
• RPi screw pack x2
• 2x20PIN female header x1

Technical Specifications
