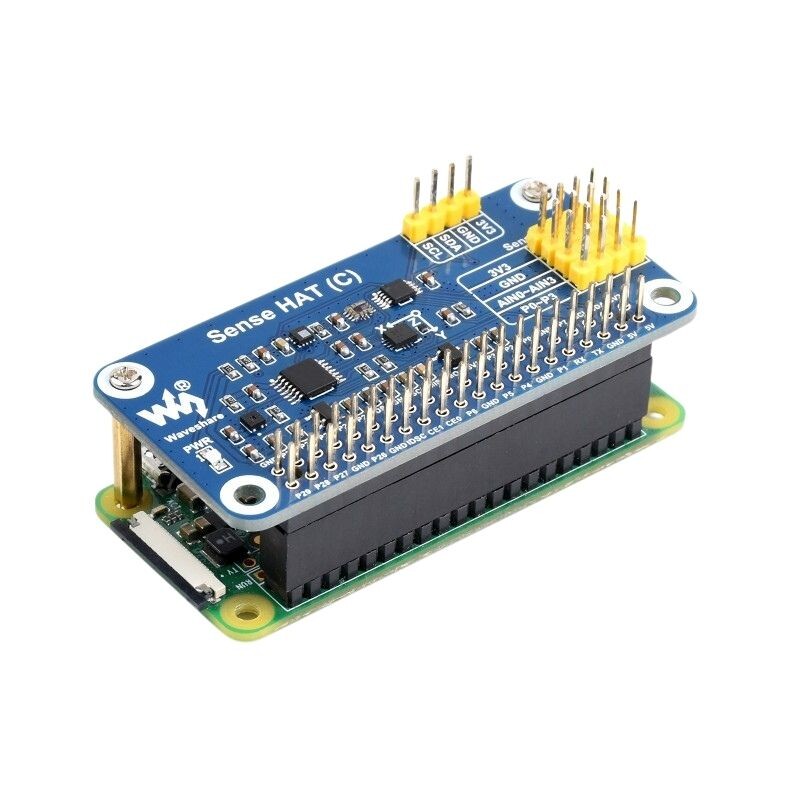

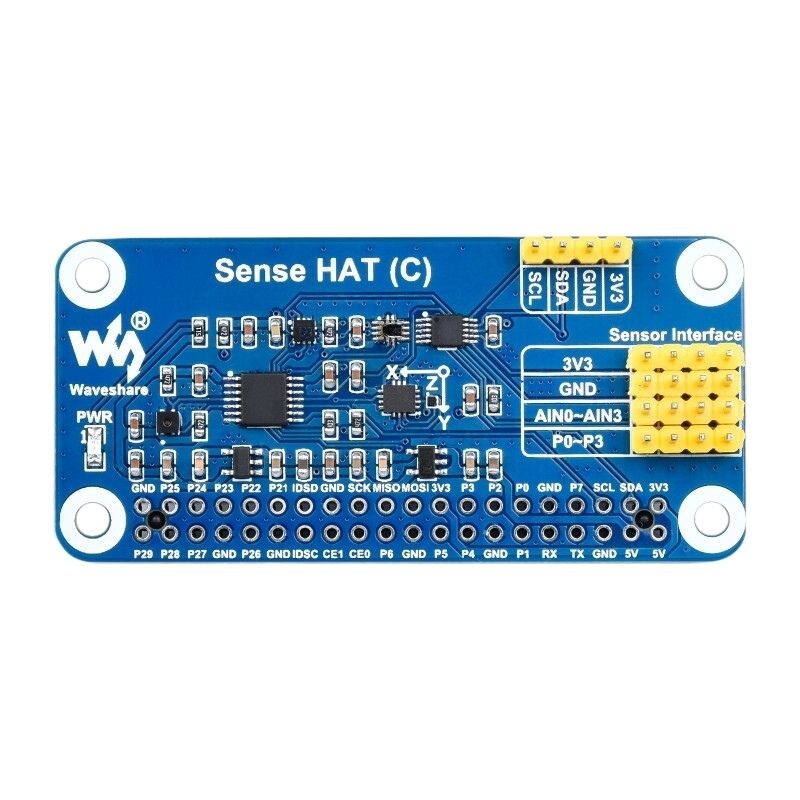

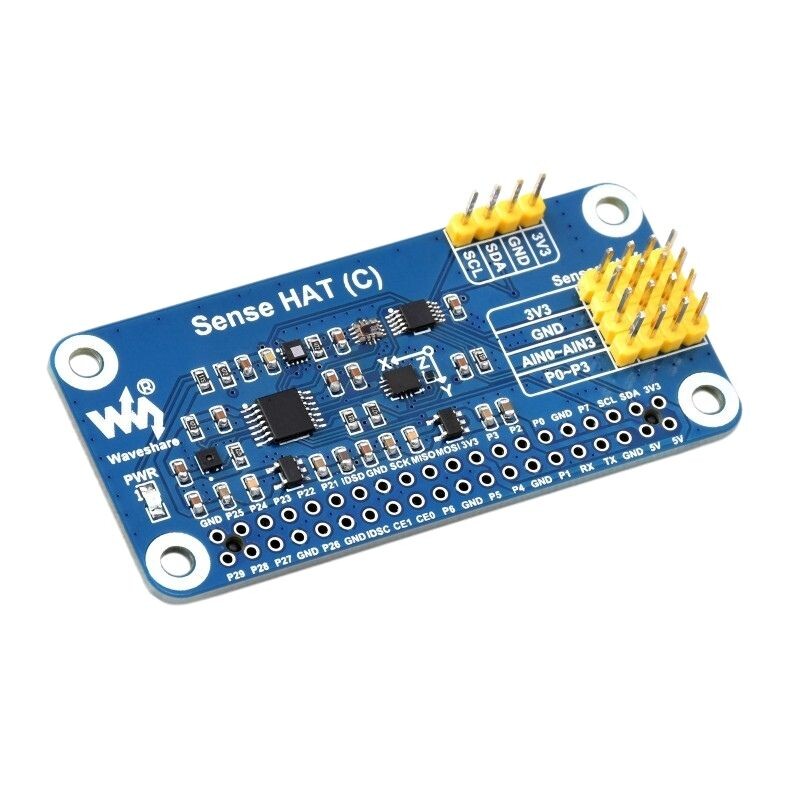

Raspberry Pi Sensor HAT (C)
Raspberry Pi Sensor HAT (C) can meet your needs if you want to turn Raspberry Pi into a robot that can sense movement, posture and orientation, or if you want Raspberry Pi to collect data such as temperature, humidity and atmospheric pressure in the environment, this HAT can meet your needs.
Features
- SKU: 23229
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards.
- Internal QMI8658C+AK09918 (3-axis accelerometer, 3-axis gyroscope and 3-axis magnetometer) detects motion, orientation and magnetic field.
- Built-in SHTC3 digital temperature and humidity sensor allows monitoring of the environment.
- Built-in LPS22HB barometric pressure sensor allows monitoring of the environment.
- Built-in TCS34725 color sensor determines the color of a nearby object.
- Built-in SGM58031, 4-channel 16-bit precision ADC, AD expansion to support more external sensors.
- Breakout I2C control pins to connect other motherboards such as STM32 and Arduino.
- Comes with development resources and manual (for Raspberry Pi/STM32/Arduino examples).
Package Contents
- Sense HAT (C) x1
- Screw Pack x1
- 2x20PIN female head x1
Technical Specifications
| Product Parameters | |
| Working Voltage: | 3.3V |
| Communication Interface: | I2C |
| Logic Voltage: | 3.3V |
| Dimensions: | 65 x 30.5(mm) |
| Accelerometer Features: | Resolution: 16-bit |
| Range (optional): ±2, ±4, ±8, ±16g | |
| Gyrometer Features: | Resolution: 16-bit |
| Range (optional): ±16, ±32, ±64, ±128, ±256, ±512, ±1024, ±2048°/sec | |
| Magnetometer Features: | Resolution: 16-bit |
| Range: ±4912µT | |
| Barometer Features: | Resolution: 24-bit pressure data, 16-bit temperature data; |
| Measurement Accuracy (at room temperature): ±0.025hPa | |
| Measuring Range: 260 ~ 1260 hPa | |
| Measurement Rate: 1 Hz - 75 Hz | |
| Temperature and Humidity Sensor Features: | Measurement Accuracy (humidity): ±2% rH |
| Measuring Range (humidity): 0% ~ 100% rH | |
| Measurement Accuracy (temperature): ±0.2°C | |
| Measuring Range (humidity): -30 ~ 100°C | |
| Color Recognition Sensor | Resolution: 4 channels RGBC, 16 bits per channel |
| AD Conversion Chip | Resolution: 16 bits |
