ZK-SJ4 60W Voltage Stepper - Booster Module Solar Charging Circuit

ZK-SJ4 is an adjustable voltage stepper - booster circuit. It allows you to convert DC voltage between 4-30V to the desired DC value between 0.5-30V. You can also charge your products such as batteries or accumulators with the solar panels you connect to the input of this product.

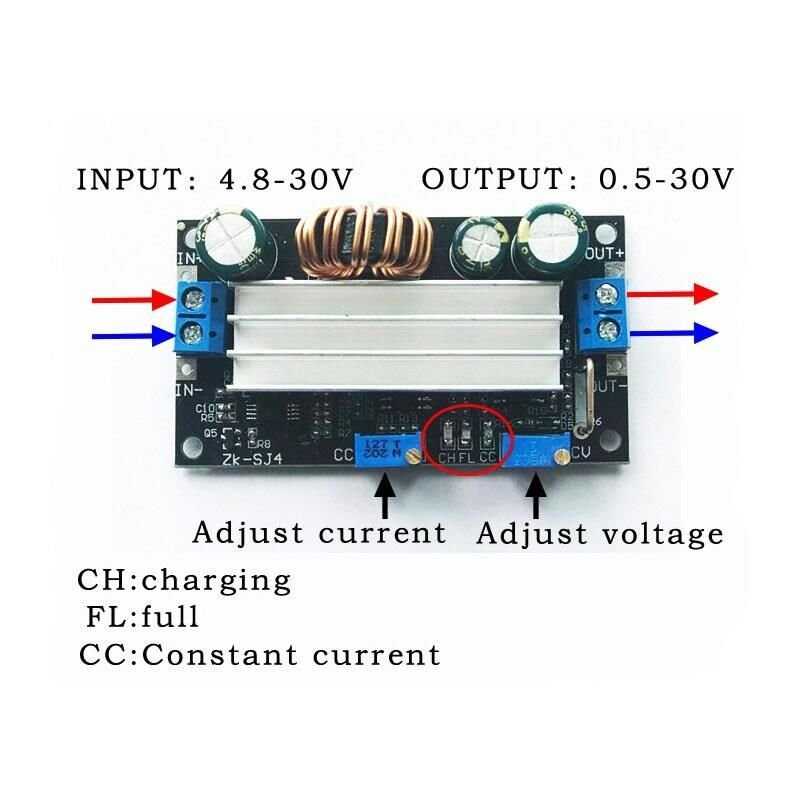

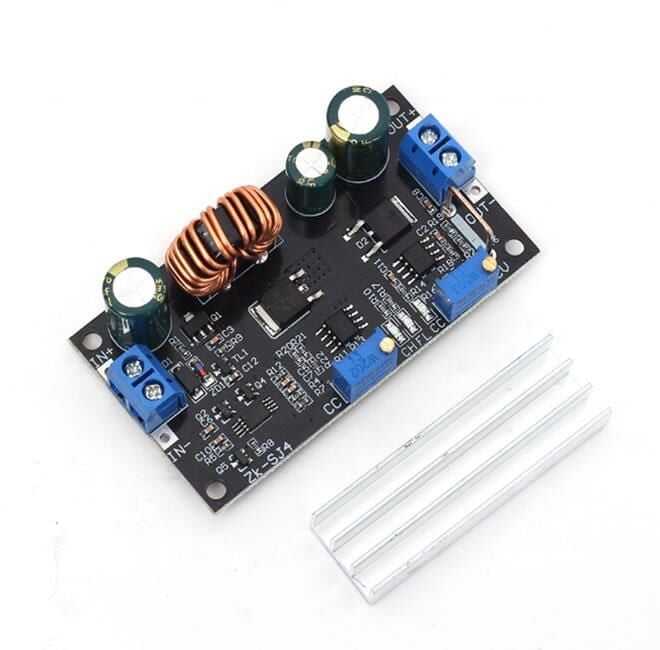

You can adjust both voltage and current with the two trimpots on the product. While the CC trimpot is used to adjust the current, the CV trimpot is used to adjust the output voltage.

The charging status can be checked thanks to the 3 LEDs on the product.

CH: Charging LED

FL: Full charge LED

CC: Constant Current LED

Technical Specifications

Input voltage: 4.8-30V
Output voltage: 0.5-30V
Output current: The recommended output current at constant current is 3A. It can be used up to 4A with cooler support for short-term use.
Output power: natural heat dissipation 35W, advanced heat dissipation 60W
Conversion efficiency: approximately 88%
>Short circuit protection: yes
Working frequency: 180KHZ

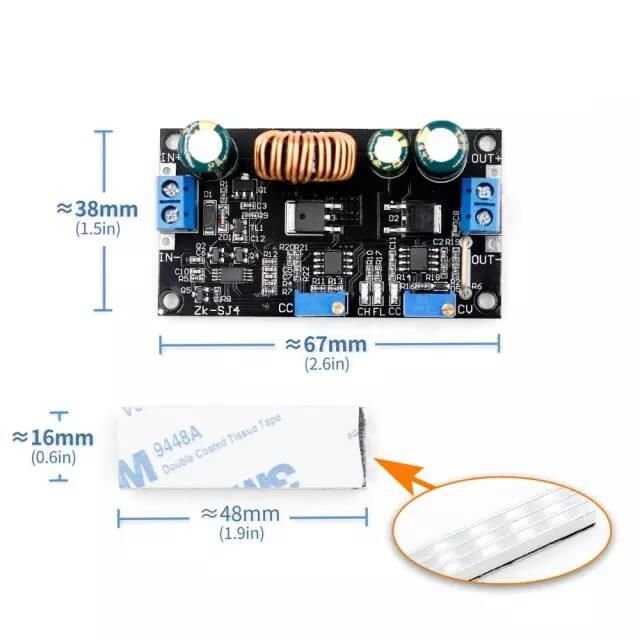

Size: length*width*height 68*37*22mm,
Weight: 38.7g
