RM520N-GL 5G Dongle (B) Expansion Board

RM520N-GL 5G Dongle (B) Expansion Board

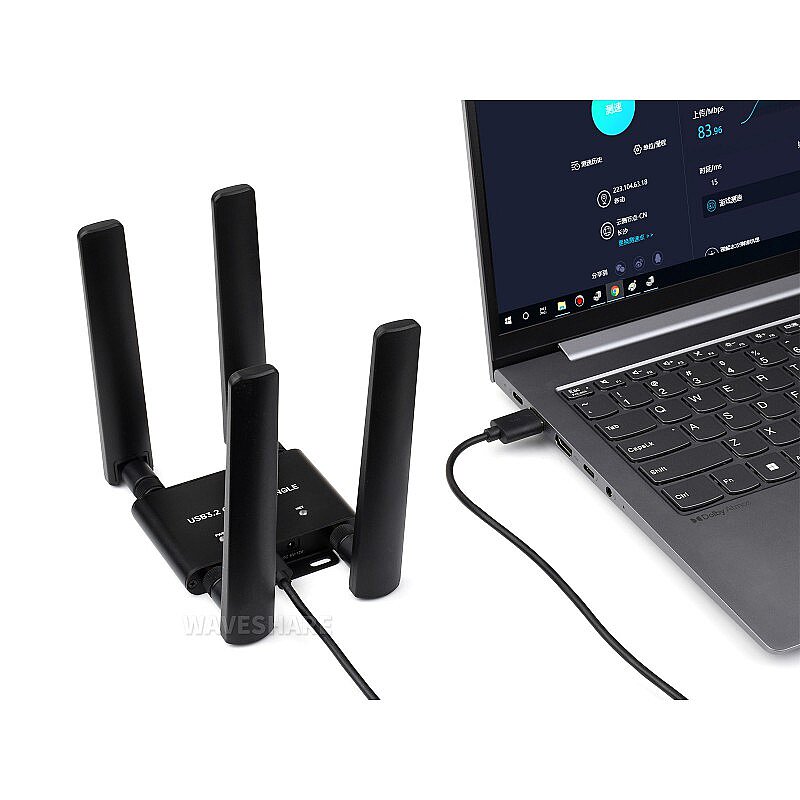

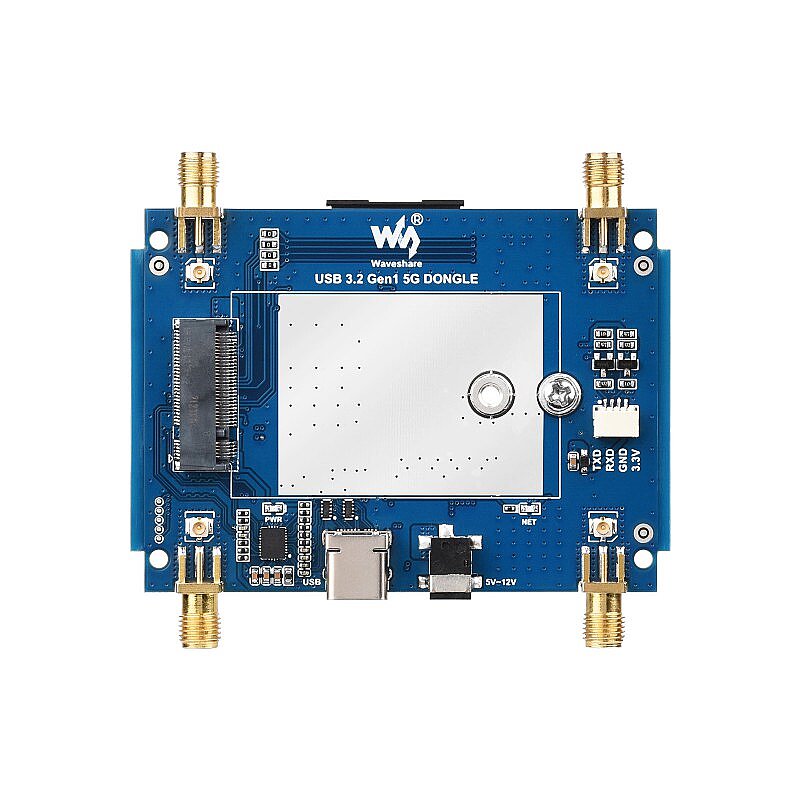

The RM520N-GL 5G Dongle (B) Expansion Board is an external modem solution designed to provide high-speed 5G/4G mobile internet connectivity to USB-enabled systems such as computers, Raspberry Pi, NVIDIA Jetson, and similar devices.

It comes equipped with the Quectel RM520N-GL 5G modem module. The RM520N-GL is a global Sub-6GHz modem based on the Qualcomm Snapdragon X62 platform, supporting 3GPP Release 16 as well as 5G NR SA and NSA modes. Quectel defines the RM520N series as a family of M.2-format IoT/eMBB modems designed for worldwide 5G/LTE-A coverage.

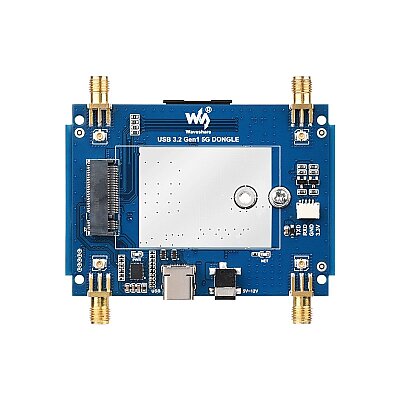

It features an M.2 Key-B modem slot and supports compatible 4G/5G modems in 3042/3052 form factors. In SKU 30237, the RM520N-GL module is included in this slot.

The physical dimensions of the RM520N-GL are approximately 30 × 52 × 2.3mm, meaning it follows the M.2 3052 form factor.

Wiki Page

Specifications

• SKU: 30237
• 5G Module: Quectel RM520N-GL
• Modem Platform: Qualcomm Snapdragon X62
• 3GPP Standard: Release 16
• 5G Technology: Sub-6GHz
• 5G NR SA: Supported
• 5G NR NSA: Supported
• 4G LTE: Supported
• 3G WCDMA: Supported
• Global Band Support: Yes

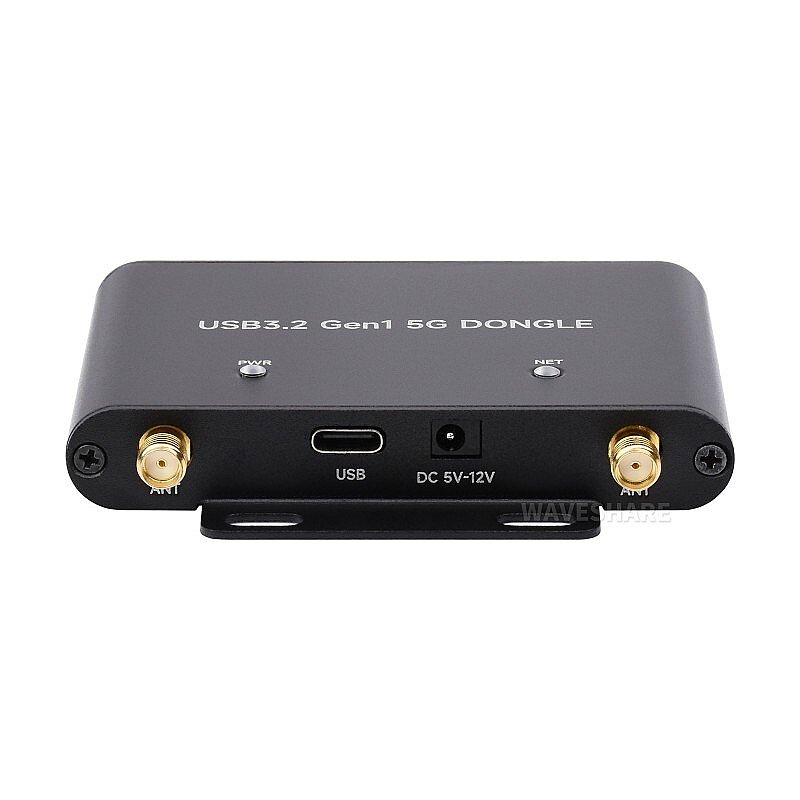

• Host Connection: USB 3.2 Gen1 Type-C
• USB Interface Speed: 5Gbps class
• M.2 Interface: Key-B
• Supported M.2 Sizes: 3042 / 3052
• RM520N-GL Dimensions: 30 × 52 × 2.3mm
• Antenna Output: 4-channel IPEX Gen4 → SMA
• External Antenna: 4 included in the package

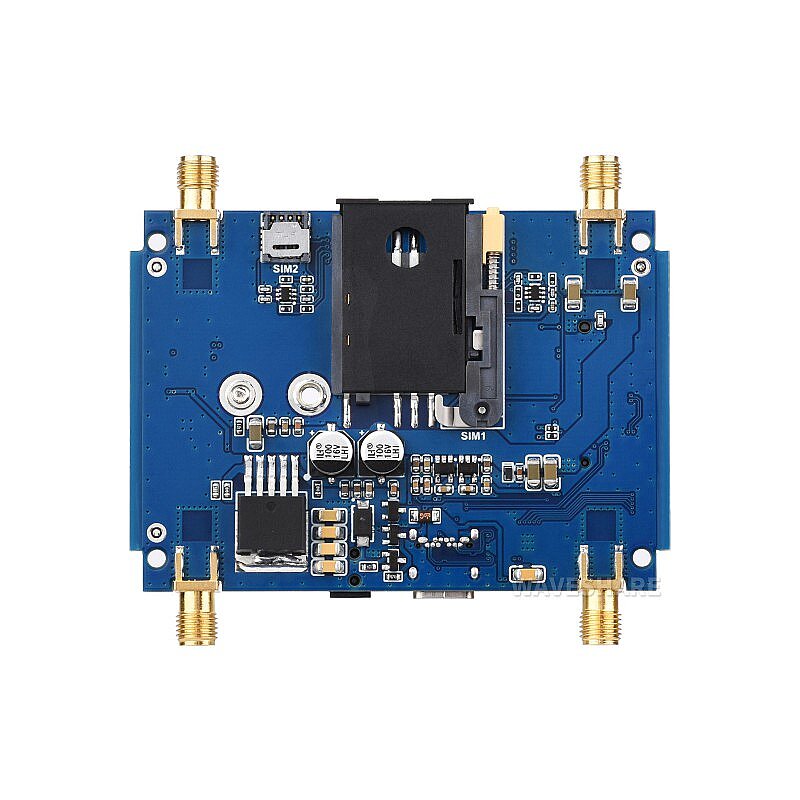

• Physical SIM: Yes
• eSIM Interface: QFN-8
• Dual SIM Operation: Dual SIM Single Standby
• SIM Switching: Via AT command in appropriate configuration
• UART: Yes

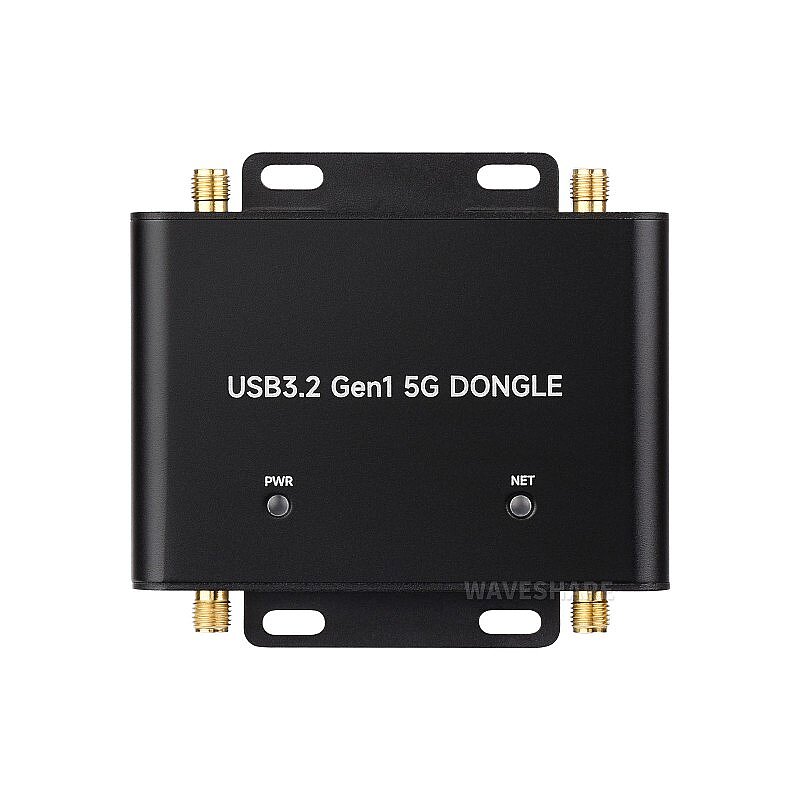

• Power LED: Yes
• Network LED: Yes
• DC Power Input: 5–12V
• DC Jack: 3.5mm
• Power via USB: 5V / 2A

Package Contents

• USB 3.2 Gen1 5G Dongle x1
• RM520N-GL x1

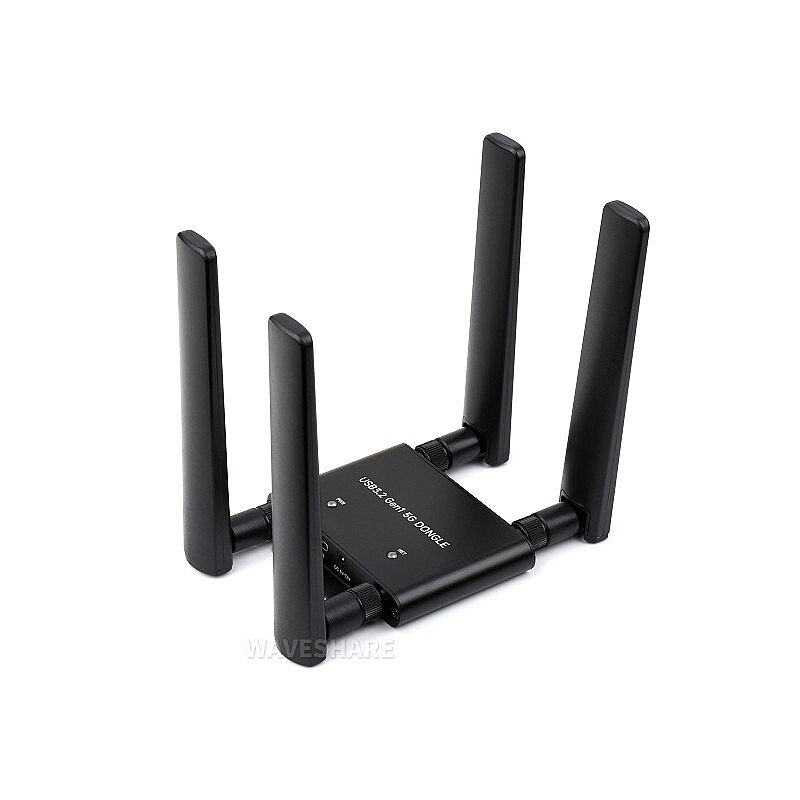

• 5G antenna x4
• USB 3.2 Type-A to Type-C cable (~1 m) x1
• USB Type-A to DC 3.5*1.35 mm cable (~1 m) x1
• IPEX adapter cable (~6 cm) (4 pieces) x1
• IPEX adapter cable (~13 cm) x1
• Thermal pad x1
• SMA protective cap (4 pieces) x1

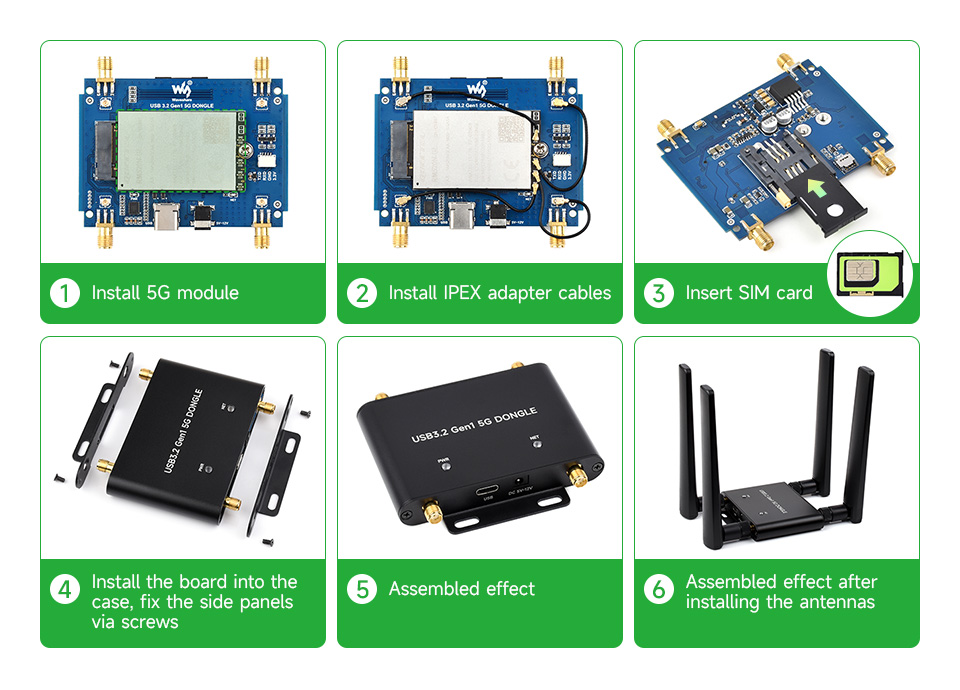

Installation

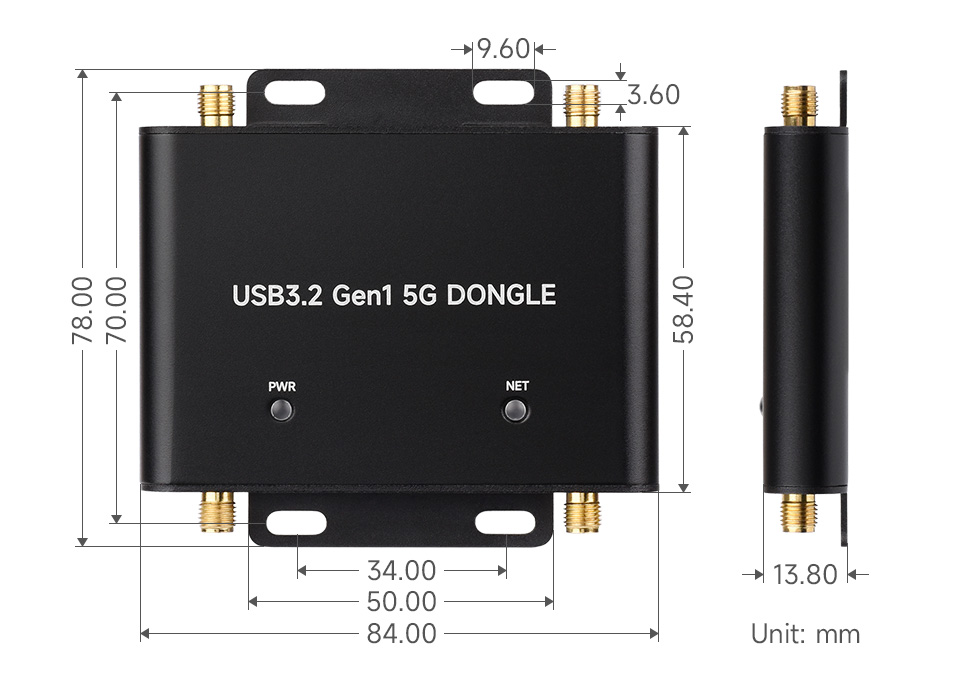

Dimensions
